Electroformed blade

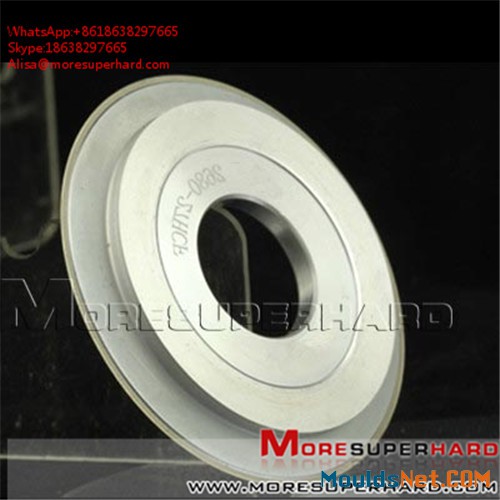

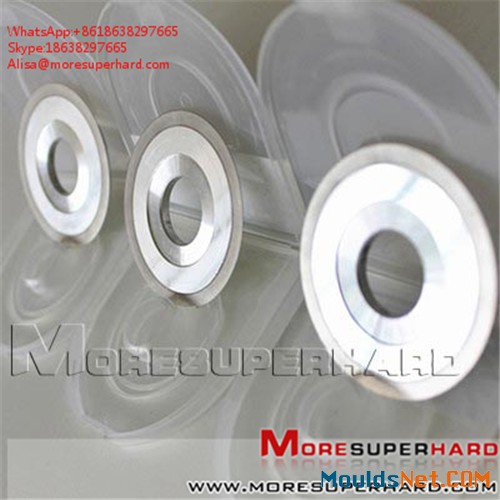

Electroformed hub dicing blade is made by using an ultra-thin diamond wheel and a high precision aluminum alloy hub.
Applications of hub dicing blade:
cutting Silicon Wafers, copper wafer, IC/LED Packages, Compound Semiconductor Wafers (GaAs, Gap),Oxide Wafers (LiTaO3), Optical Glass
The features of hub type dicing blade:
* improving balance between blade life and processing quality (in particular backside chipping)
* Strengthens rigidity, Reduction in wavy cutting and blade wear under high load conditions
* precise control of diamond grit size, diamond concentration, and nickel bond hardness to reduce splitting on the edges
* Realizes high speed wafer cutting after laser grooving.
The specification of hub type dicing blade:
|
Exposure(μm) |
380 |
510 |
640 |
760 |
890 |
1020 |
1150 |
1270 |
grit size |
|
Kerf width(μm) |
380 - 510 |
510 - 640 |
640 - 760 |
760 - 890 |
890 - 1020 |
1020 - 1150 |
1150 - 1270 |
1270 - 1400 |
#5000 #4800 #4500 #4000 #3500 #3000 #2500 #2000 #1800 #1700 #1500 |
|
16 - 20 |
20 * 380 |
20 * 510 |
|
|
|
|
|
|
|
|
21 - 25 |
25 * 380 |
25 * 510 |
25 * 640 |
|
|
|
|
|
|
|
26 - 30 |
30 * 380 |
30 * 510 |
30 * 640 |
30 * 760 |
30 * 890 |
20 * 1020 |
|
|
|
|
31 - 35 |
35 * 380 |
35 * 510 |
35 * 640 |
35 * 760 |
35 * 890 |
35 * 1020 |
|
|
|
|
36 - 40 |
40 * 380 |
40 * 510 |
40 * 640 |
40 * 760 |
40 * 890 |
40 * 1020 |
40 * 1150 |
|
|
|
41 - 50 |
50 * 380 |
50 * 510 |
50 * 640 |
50 * 760 |
50 * 890 |
50 * 1020 |
50 * 1150 |
50 * 1270 |
|
|
51 - 60 |
|
60 * 510 |
60 * 640 |
60 * 760 |
60 * 890 |
60 * 1020 |
60 * 1150 |
60 * 1270 |
|
|
61 - 70 |
|
|
70 * 640 |
70 * 760 |
70 * 890 |
70 * 1020 |
70 * 1150 |
70 * 1270 |
|
|
71 - 80 |
|
|
|
|
80 * 890 |
80 * 1020 |
80 * 1150 |
80 * 1270 |
|
|
81 - 90 |
|
|
|
|
|
90 * 1020 |
90 * 1150 |
90 * 1270 |
Why choose our product
More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.
The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits. more brings in revenue for you, you win, we win!
More SuperHard supplies the wheels for several application mainly:
1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .
2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels
|
Our product’s advantages: 1.High grinding efficiency |
|
2.Wonderful edge quality |
|
3.Long service life |
|
4.High polishing efficiency |
|
5.Large Exports |
|
6.Considerable after-sell service |
|
7.Amazing performance |
|
8.Various types and sizes available |
|
9.Direct Factory Manufacturer |
|
10.Backing/substrate material: Aluminum |
|
11.Abrasive layer: diamond |
|
12.Bond: vitrified |
|
13.Excellent cutting edges |
|
14.Reduced cycle times |
|
15.Custom Engineered |
